通讯应用
PoE Module Family
| Series | Dimensions (L*W*T)mm | Input Voltage Range（Vdc） | Output Voltage（Vdc） |
|---|---|---|---|
| PDT12XXX | * | 36~57 | 12 |
⟵
2.5G/5Gbit Base-T Compliant With IEEE 802.3 Standards
Compliant With IEEE 802.3 Standards

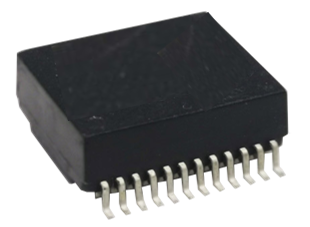

| Series | Dimensions (L*W*T)mm | Standards | Port | Pin |
|---|---|---|---|---|
| GC8809AP | 29.20 x 26.50 x 13.00 | 1G | 4 | 88 |
| GC7202C | 34.60 x 18.80 x 13.80 | 1G | 4 | 72 |
| GC4801DIP | 28.20 x 11.00 x 11.20 | 1G | 2 | 48 |
| GC1801A | 16.60 x 8.40 x 11.85 | 1G | 1 | 18 |
| GC3601A | 32.75 x 8.45 x 12.10 | 1G | 2 | 36 |
| GS2402SIP | 17.50 x 12.05 x 5.75 | 1G | 1 | 24 |
| GS2402CIP | 15.10 x 7.10 x 4.00 | 1G | 1 | 24 |
| GC2401DIP | 15.70 x 11.00 x 11.20 | 1G | 1 | 24 |
| GH2410A | 15.60 x 8.50 x 2.30 | 1G | 1 | 24 |
| MS1601SIP | 12.80 x 7.00 x 5.70 | 10/100 | 1 | 16 |
| MS1601D | 12.70 x 7.1 x 2.10 | 10/100 | 1 | 16 |
| MC1201A | 14.10 x 7.65 x 6.60 | 10/100 | 1 | 12 |
| GS5002SI | 27.78 x 7.3 x 8.4 | 1G | 2 | 50 |
⟵
Surface Mount CMC
| Series | Dimensions (L*W*T)mm | Impedance(Ω） | Rated Current(A) | DCR (mΩ） |
|---|---|---|---|---|
| CM0805-800P-AT | 2.0 x 1.2 x 1.2 | 800 | 0.3 | 88 |
⟵
Surface Mount CMC
| Series | Dimensions (L*W*T)mm | Impedance(Ω） | Rated Current(A) |
|---|---|---|---|
| CM090605C-102 | 8.9 x 5.5 x 4.6 | 6000 | 0.8 |
| CM301815-281-4L | 3.5 x 2.5 x 2.8 | 280 | 0.60 |
⟵
